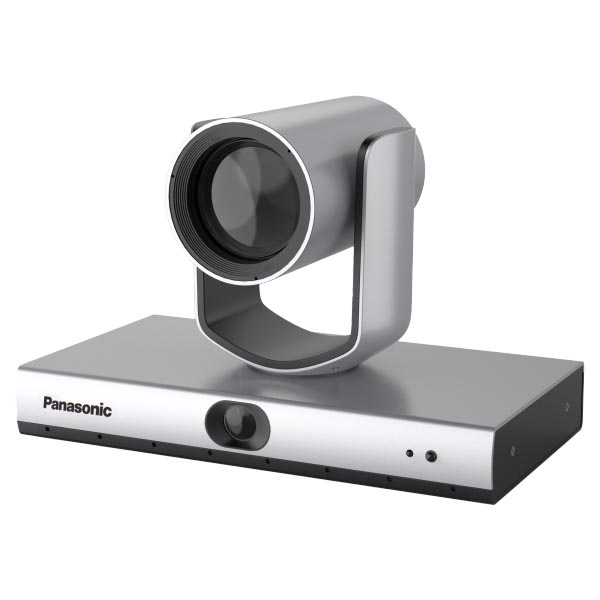

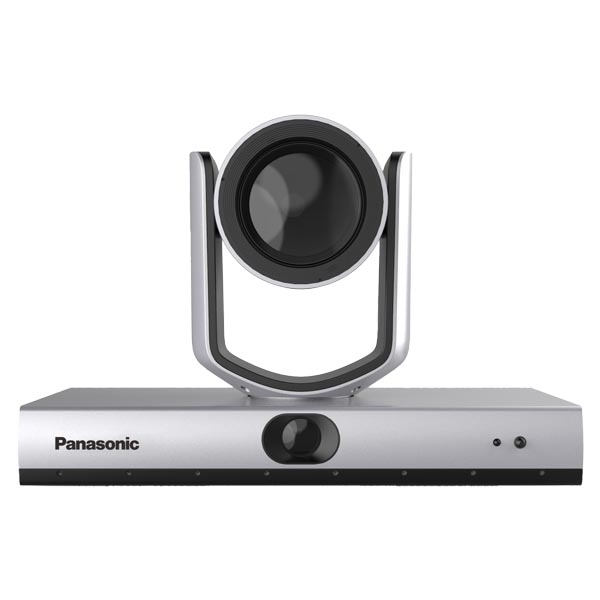

KX-VD200SX (USB Camera , 12X Zoom, Voice Tracking, for Zoom, Teams and Cloud based Video Conference Service)
Implemented with audio positioning and intelligent face detection algorithm. Auto switch between close-up image and wide-angle image for whole meeting.
A tracking camera & an EPTZ 4K full-view camera.
Full-view EPTZ camera can automatically frame all the meeting participants.
Auto switch between close-up image and EPTZ full-view image.
Support HDMI, USB2.0, 3G-SDI & network interface, up to 1080P60 resolution
KX-VD200SX
Description
Model Name
KX-VD200SX
| Camera | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.8”CMOS, 2MP | ||||||||||
| Focal | f=3.9mm-46.8mm | ||||||||||
| Iris | F1.6-F2.8 | ||||||||||
| Zoom | Optical:12X, Digital:12X | ||||||||||
| FOV | Horizontal72.5°-6.3° | ||||||||||
| Focus | Auto, Manual, PTZPush, One Push | ||||||||||
| Shutter Speed | 1/1~1/10,000s | ||||||||||
| AGC | Auto, Manual | ||||||||||
| White Balance | Auto, Indoor, Outdoor, OnePush, Manual, AutoTrack, Color Temp | ||||||||||
| Exposure | Auto, Manual, Shutter Priority, IrisPriority | ||||||||||
| SN Ratio | ≥ 50dB | ||||||||||
| BLC | Yes | ||||||||||
| Full View Camera | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.8”CMOS,2.14MP | ||||||||||
| Lens | 2.8mmfocus,4X digitalzoom | ||||||||||
| FOV | 98° | ||||||||||
| DNR | 2D/3D | ||||||||||
| Video Adjustment | Support EPTZ | ||||||||||
Preset Number64
| PTZ | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pan | -90°~+90°,0.2°~100°/s | ||||||||||
| Tilt | -30°~+90°,0.2°~100°/s | ||||||||||
| Network | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Image Size | 1920×1080@60fps | ||||||||||
| Video Compression | H.264/H.265/MJPEG | ||||||||||
| Audio Compression | AAC | ||||||||||
| Protocol | RTSP, RTMP, RTP, TCP, UDP, ONVIF | ||||||||||
| Multi-Stream | Support 1×close-upview, 1×fullview, 1×switching | ||||||||||
| Interface | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SDI | 1×3G-SDI, VideoFormat: 1080P60/50/30/25, 720P60/50 | ||||||||||
| HDMI | 1×HDMI, VideoFormat: SameasSDI | ||||||||||
| USB | 1×USB2.0 , supportUVC/UAC | ||||||||||
| Audio Input | 2×3.5mm LINEIN, including one channel echo cancellation reference audio input | ||||||||||
| Network Interface | 1x10M/100M RJ45 | ||||||||||
| General | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Control Protocol | VISCA | ||||||||||
| Address | 44348 | ||||||||||
| Power Supply | DC12V | ||||||||||
| Power Consumption | <20W | ||||||||||
| Working Temperature | 0°C~+40°C | ||||||||||
| Storage Temperature | -20°C~+60°C | ||||||||||
| Dimension（ L×W×H ） | 245mm×145mm×165mm Weight | ||||||||||
| Weight | ＜ 2KG | ||||||||||
