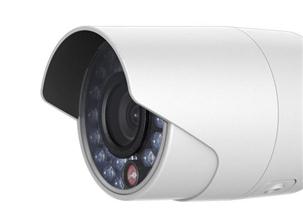

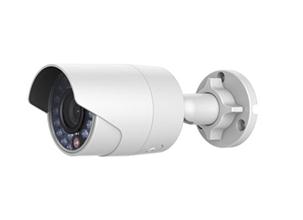

DS-2CD2010F-I(W)


1.3MP IR Bullet Network Camera

l   1.3MP high resolution

l   HD real-time video

l   3D DNR & DWDR & BLC

l   IR LEDs: up to 30m

l   IP67

l   PoE

l  Built-in Micro SD/SDHC/SDXC card slot, up to 128G

Description

Camera
Image Sensor:1/2.8″ Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR
Shutter time:1/3 s to 1/100,000 s
Lens:4mm@ F2.0, Angle of view: 85°(6mm optional)
Lens Mount:M12
Auto Iris:DC drive
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:Digital WDR
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.264/MJPEG
Video bit rate:32Kbps~8Mbps
Dual Stream:Yes

Compression Standard
Video Compression:H.264/MJPEG
Video bit rate:32Kbps~8Mbps
Dual Stream:Yes

Max. Image Resolution:1920 x 1080
Frame Rate:50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Image Settings:Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC:Yes, zone configurable
ROI:support
3D DNR:support

Network
Network Storage:NAS (Support NFS,SMB/CIFS)
Alarm Trigger:Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols:    TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering, Anonymous access
System Compatibility:ONVIF, PSIA, CGI, ISAPI
